eMoMo HX90AHU Switch for Lazy Boy Recliner 2 Button USB
- This is the genuine eMoMo HX90AHU switch, it has 2 buttons and 1 USB charging port, it is suitable for some Lazy Boy recliners.
- The model of this switch is HX90AHU, if your switch has the same model, then this switch can perfectly replace yours.
- The switch has 2 butterfly buttons, which can control the up/down of one motor

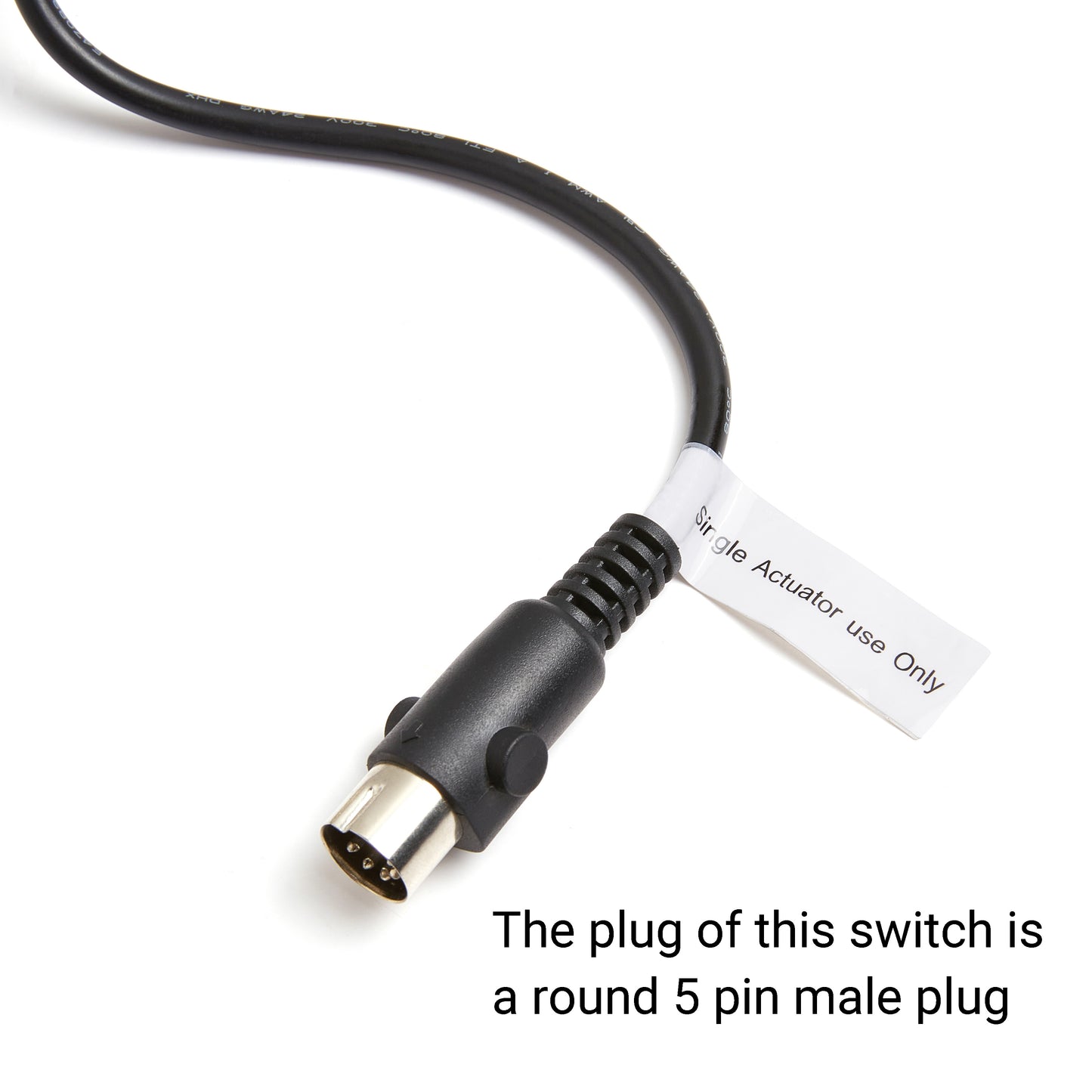

- The plug of the switch is a round 5-pin male
- The switch is not universal, it only works on several lazy boy recliners

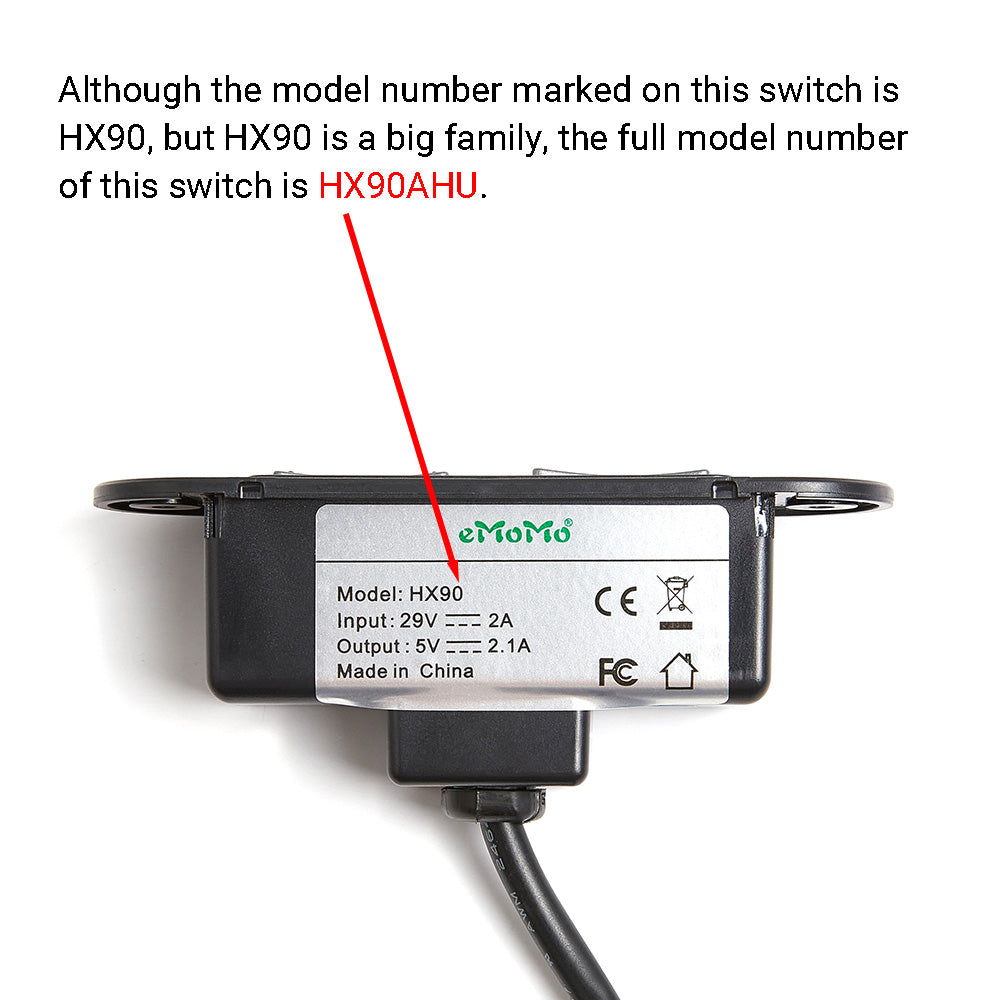

- Although the model number marked on the switch is HX90, but HX90 is a big family, its full model number is HX90AHU.

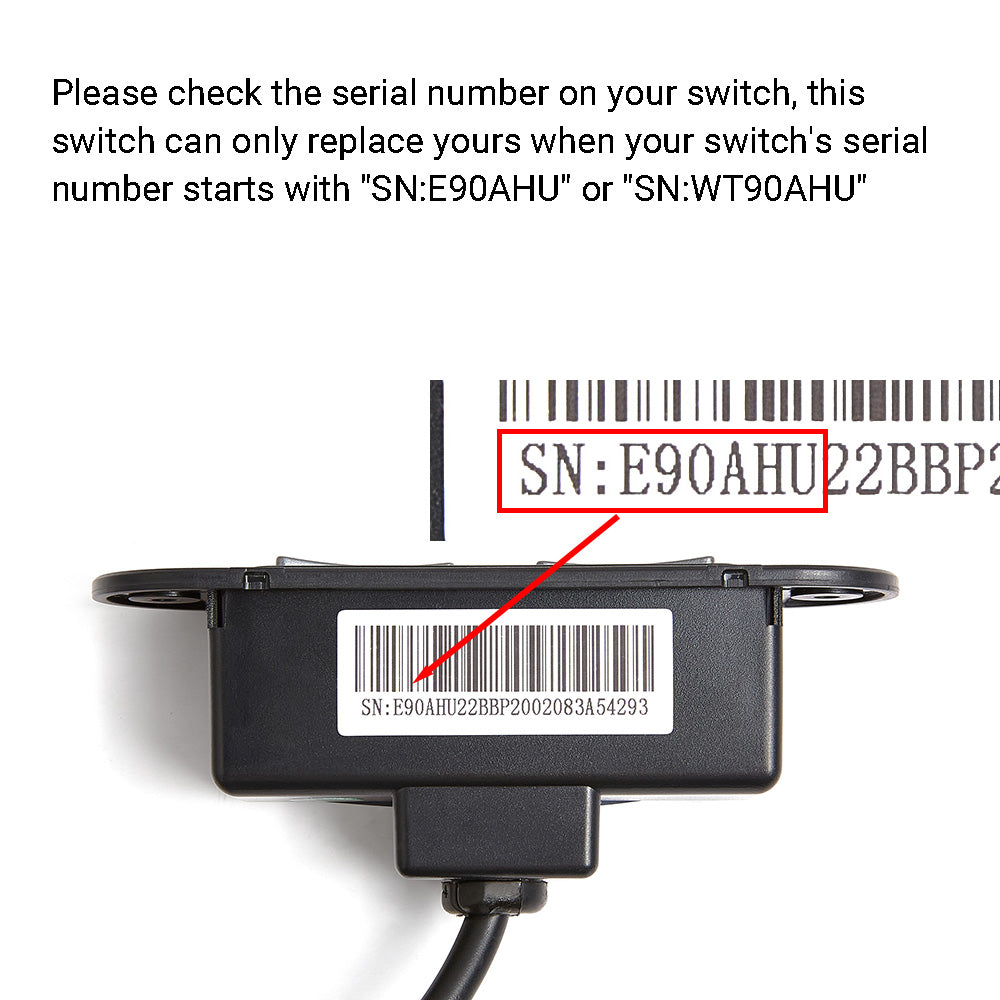

- Please check the serial number of your switch, make sure it starts with "SN:E90AHU" or "SN:WT90AHU", if not, then this switch cannot replace yours.
- The cover plate of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
- When you are installing the switch, do not install the cover until everything is done.
- After installing this switch to your chair, please operate the actuator motor to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
- Avoid quick operation of the buttons: When responding to the switching operation, the current is large, quick operation is more likely to cause damage to the switch.
