23300045X000 Seven Button Switch for Recliner or Lift Chair Three Plugs With USB
This is the genuine 23300045X000 Switch (model number WPS7C10W-001). This switch is suitable for power recliner, lift chair, sofa. If the switch you are about to replace has the exact same model number, this switch will replace it seamlessly.

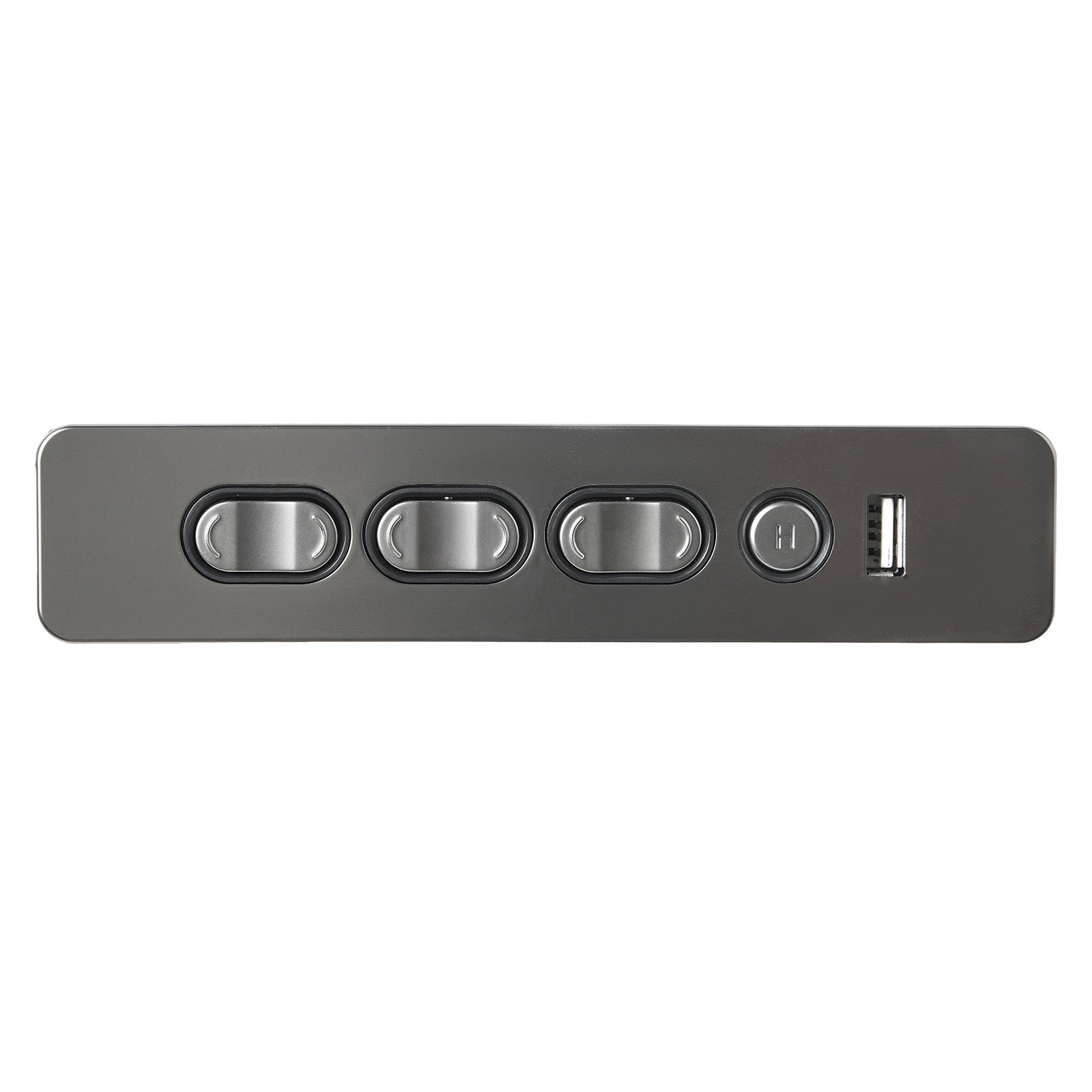

- The switch has seven buttons, it controls the footrest up/down, lumbar forward & backward, headrest forward/backward.
- With a USB charging port, you can use it to charge your mobile device.

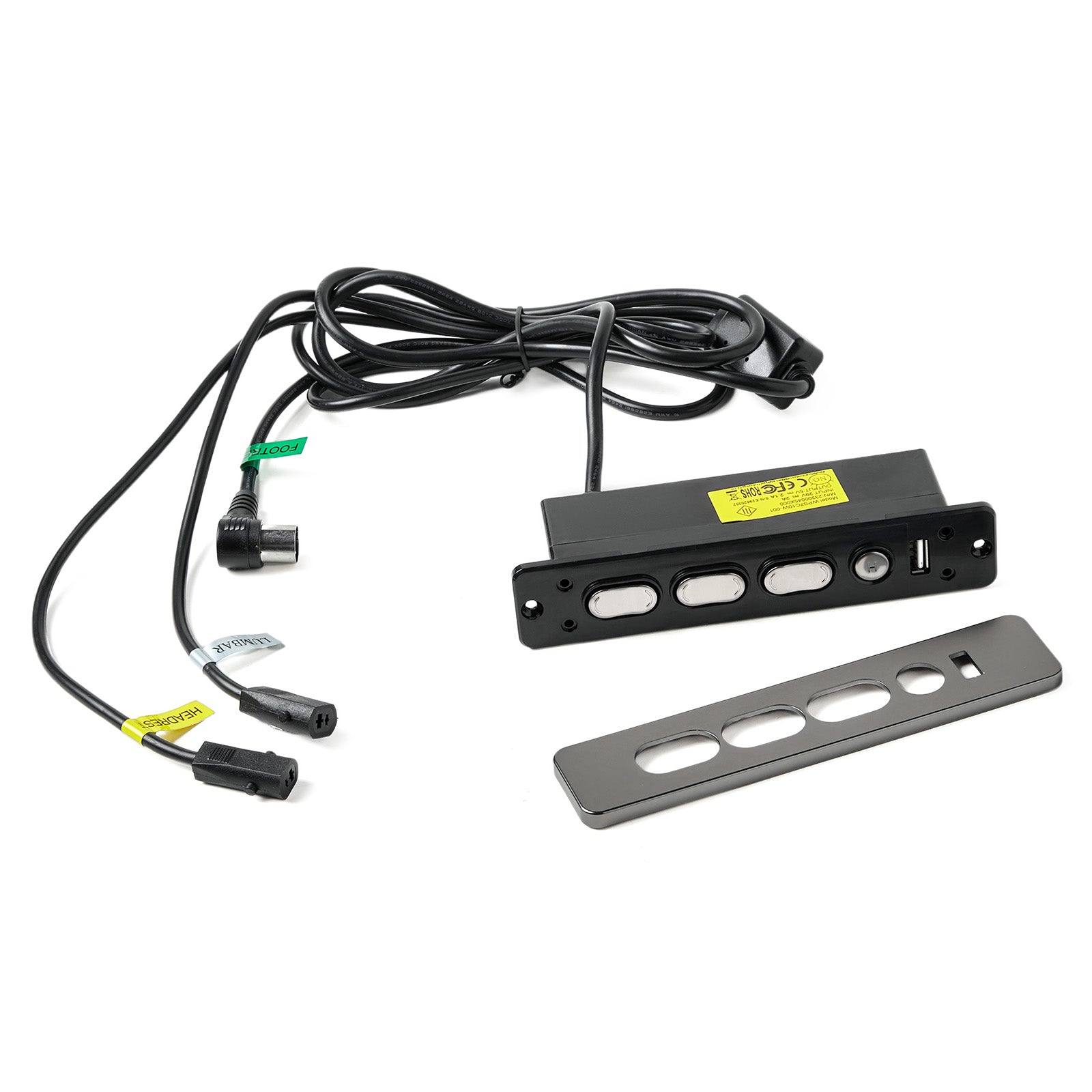

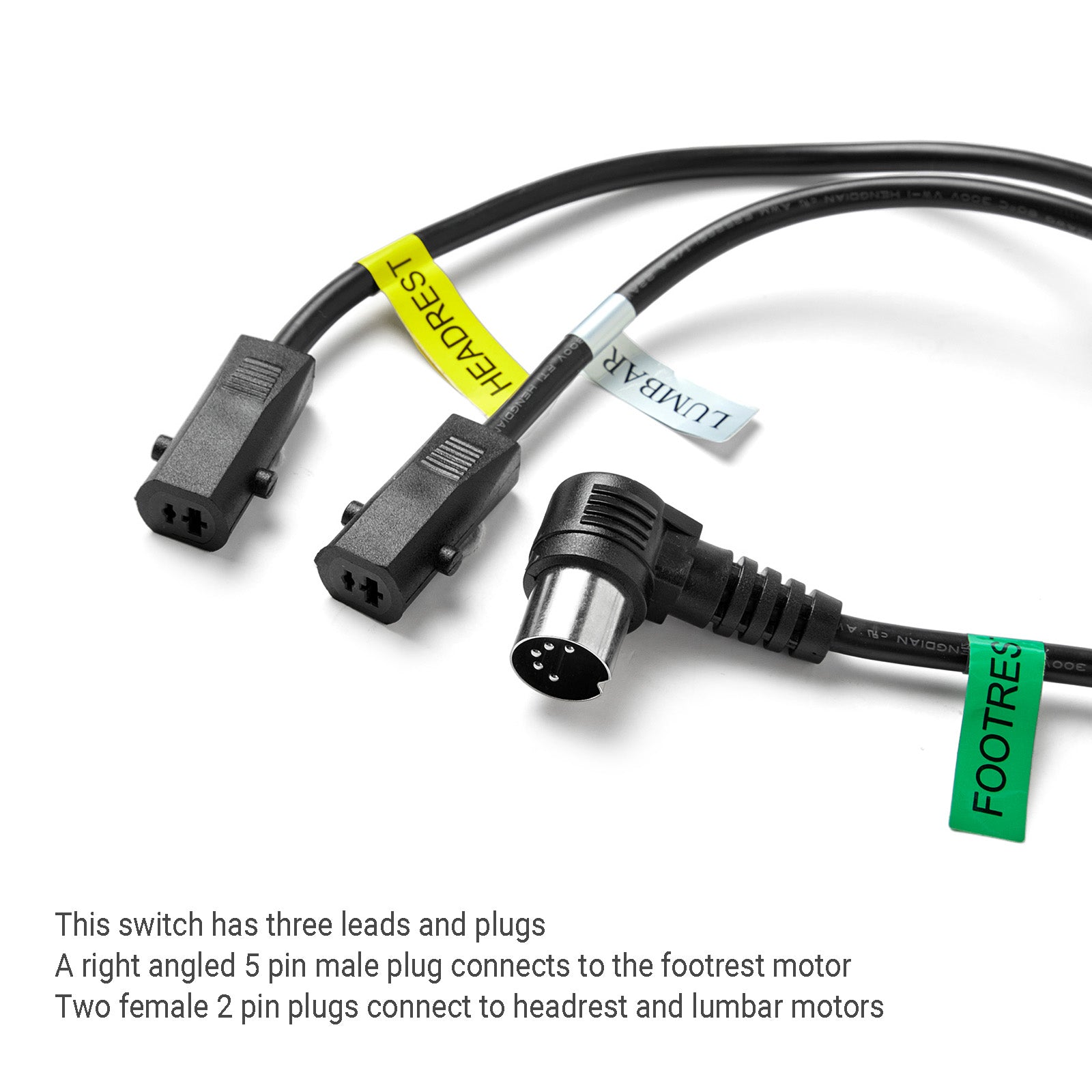

- This switch has three cables & plugs: A right angled 5-pin plug connects to the footrest motor; two female 2-pin plug connects to the head cushion and lumbar motor.

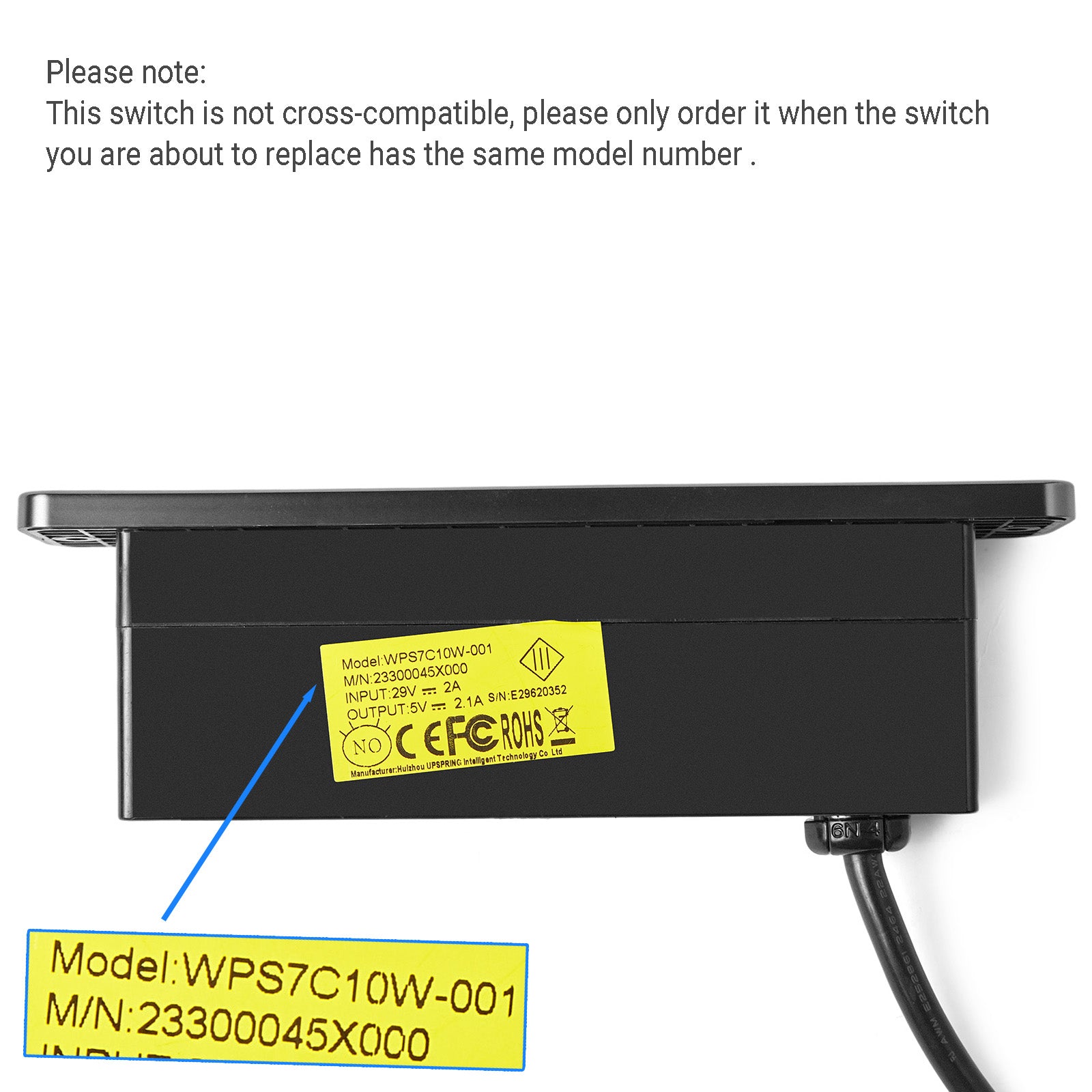

The 23300045X000 is not a cross compatible switch, please only order when your switch has the same model number.
- Model Number: WPS7C10W-001
- Manufacturer Number: 23300045X000
- Rated Voltage: 29V 2A.
- USB port output: 5V 2.1A
- The face plate of the switch is difficult to remove once it is locked. To facilitate your installation, the face plate will be separated from the switch when shipping.
- When you are installing the switch, do not install the face plate until everything is done.
