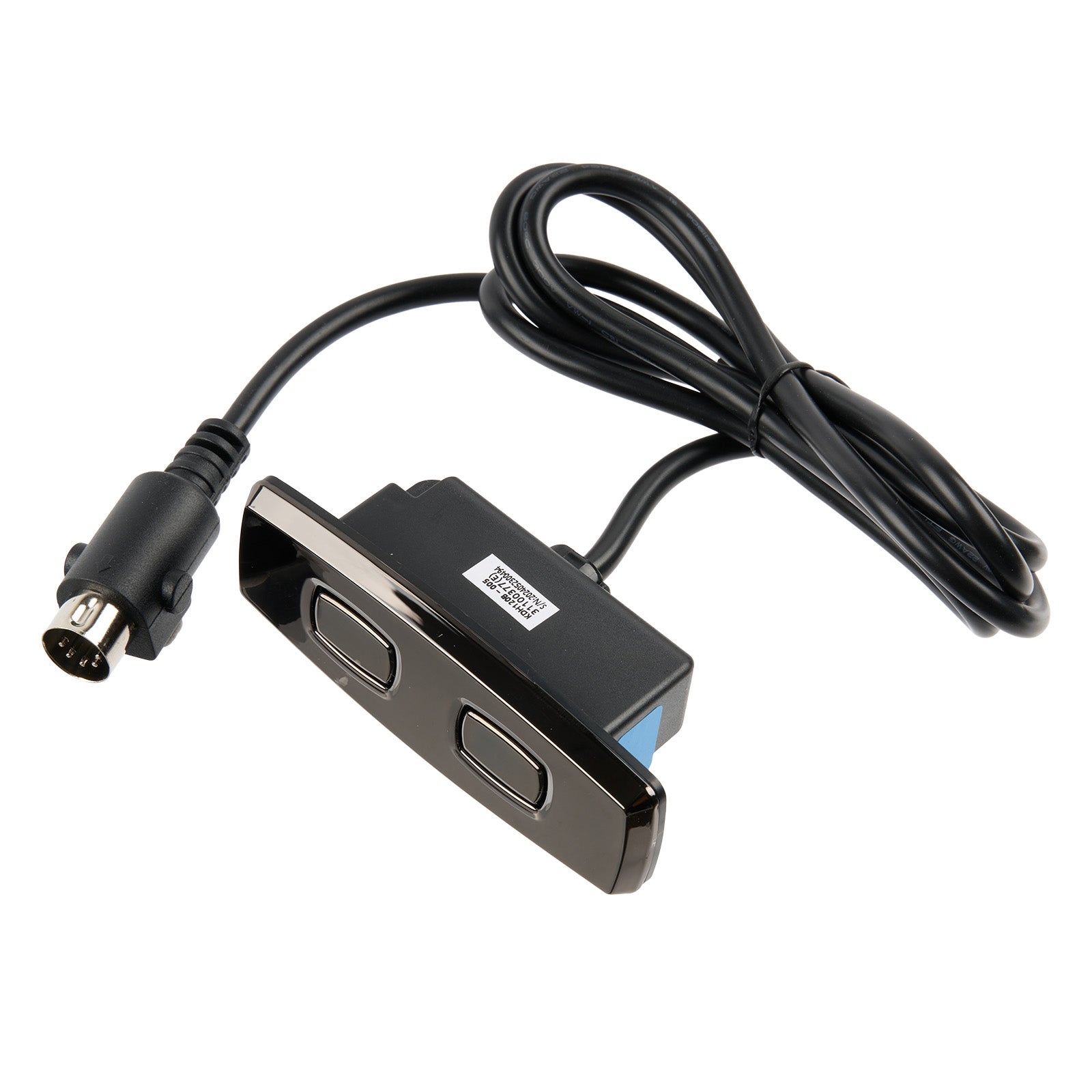

KDH120B-005 4 Button Switch/Controller for Recliner Lift Chair
- This is a Kaidi 4 button fixed switch/controller for recliners or lift chairs.

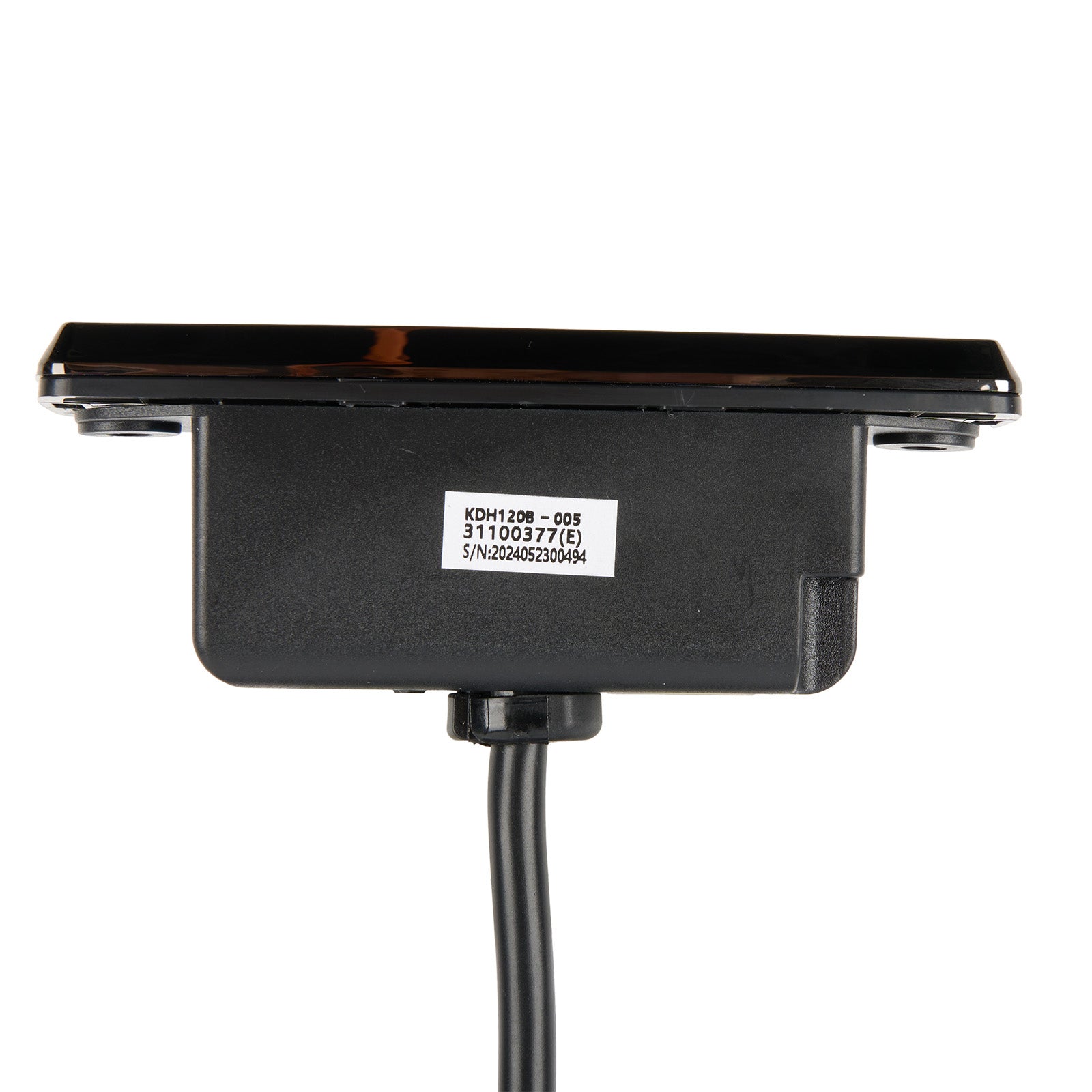

- The model number is KDH120B-005, if your original switch has the exact same model number, you can use this one to replace it.

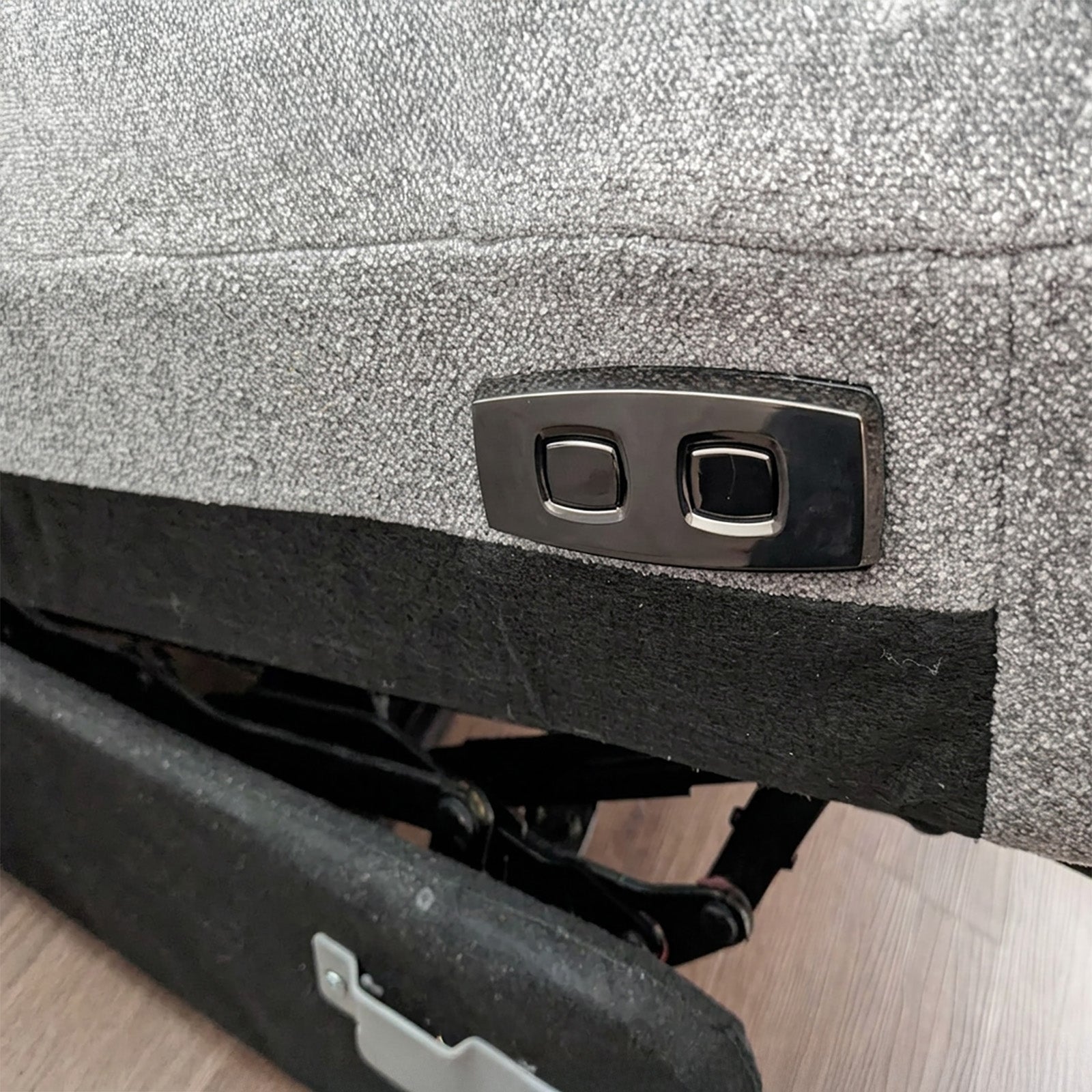

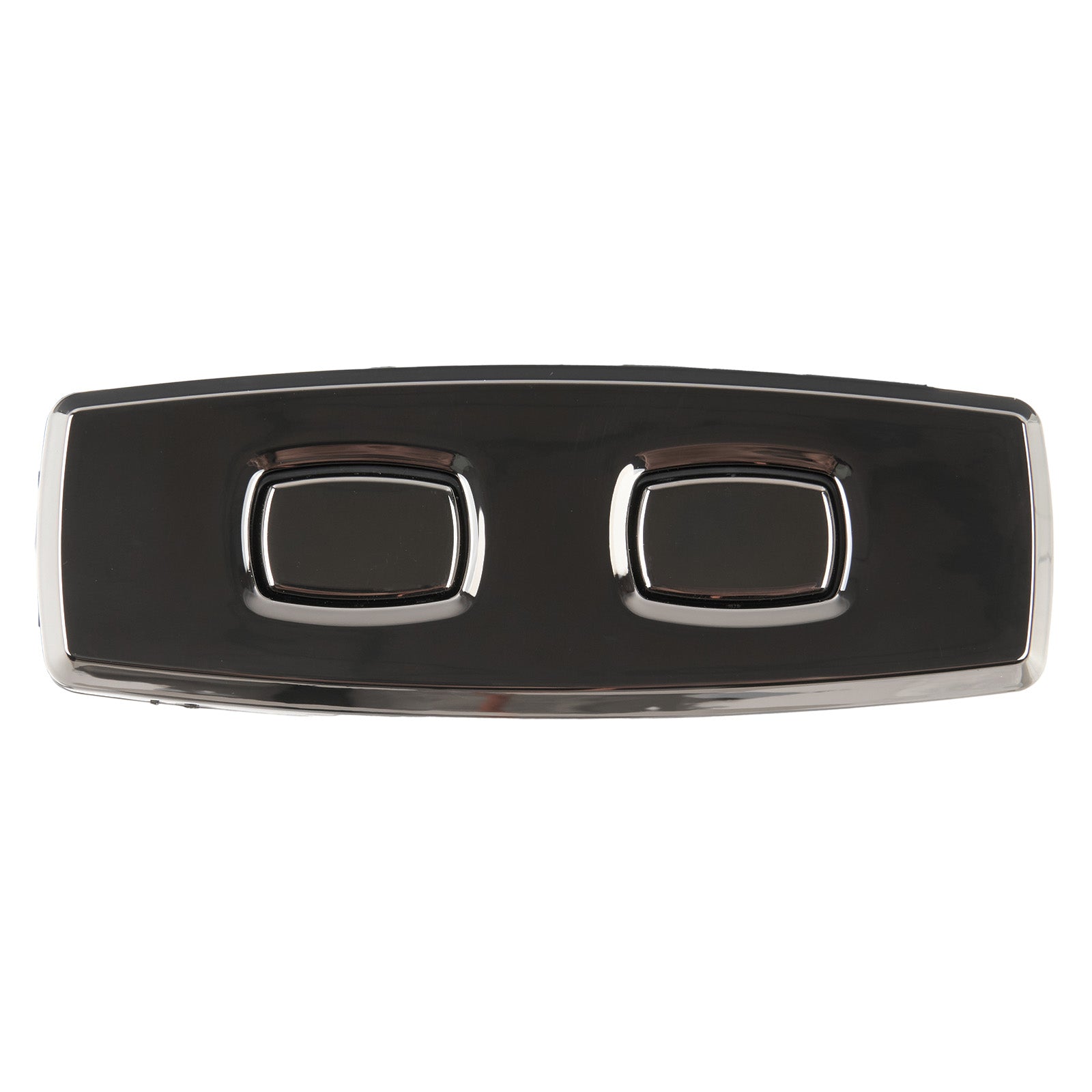

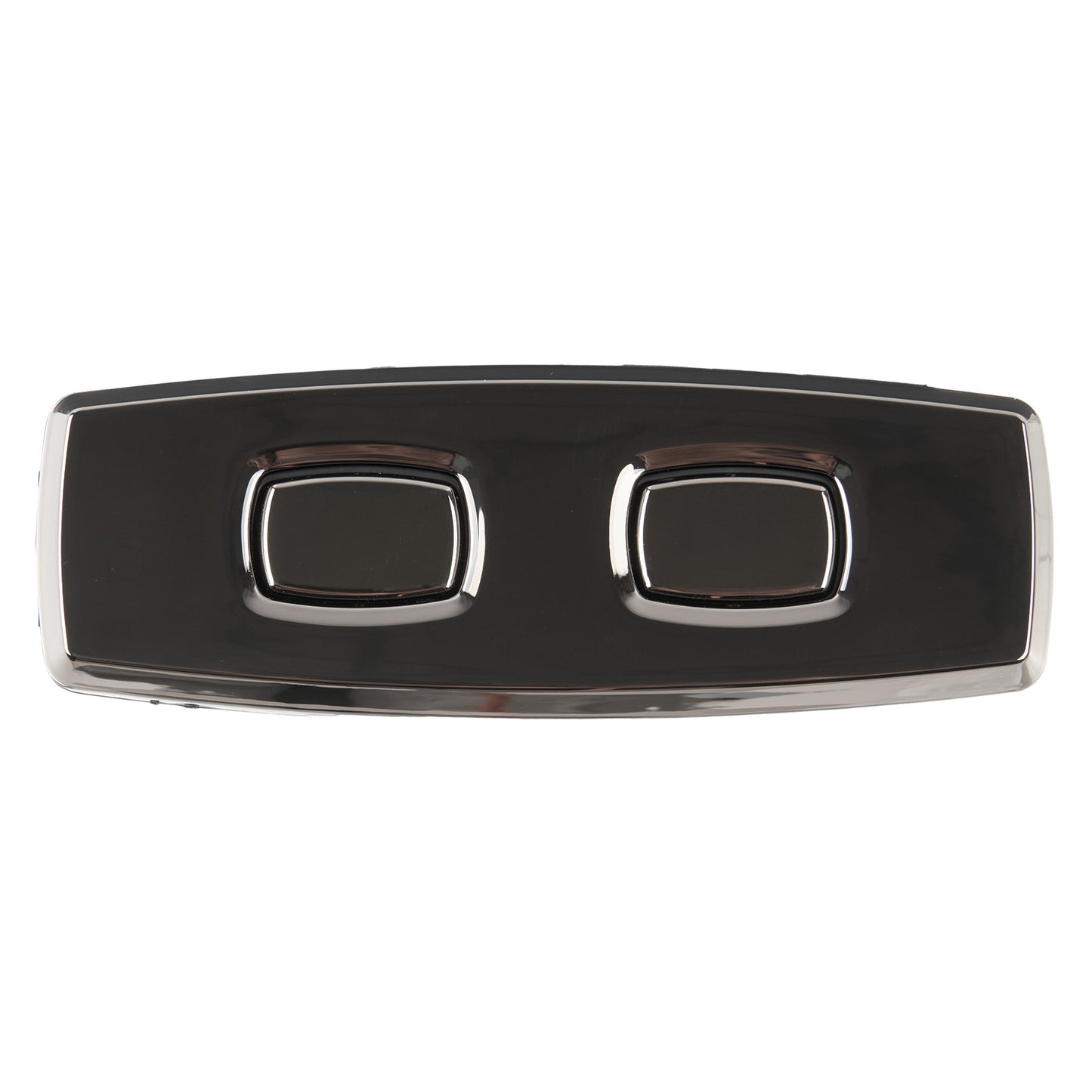

- The switch has 2 butterfly buttons, each button operates the up/down of a linear actuator, the switch is suitable for 2 linear actuators recliner/lift chair. Usually, one for the head cushion, the other one for the raise/recline function.

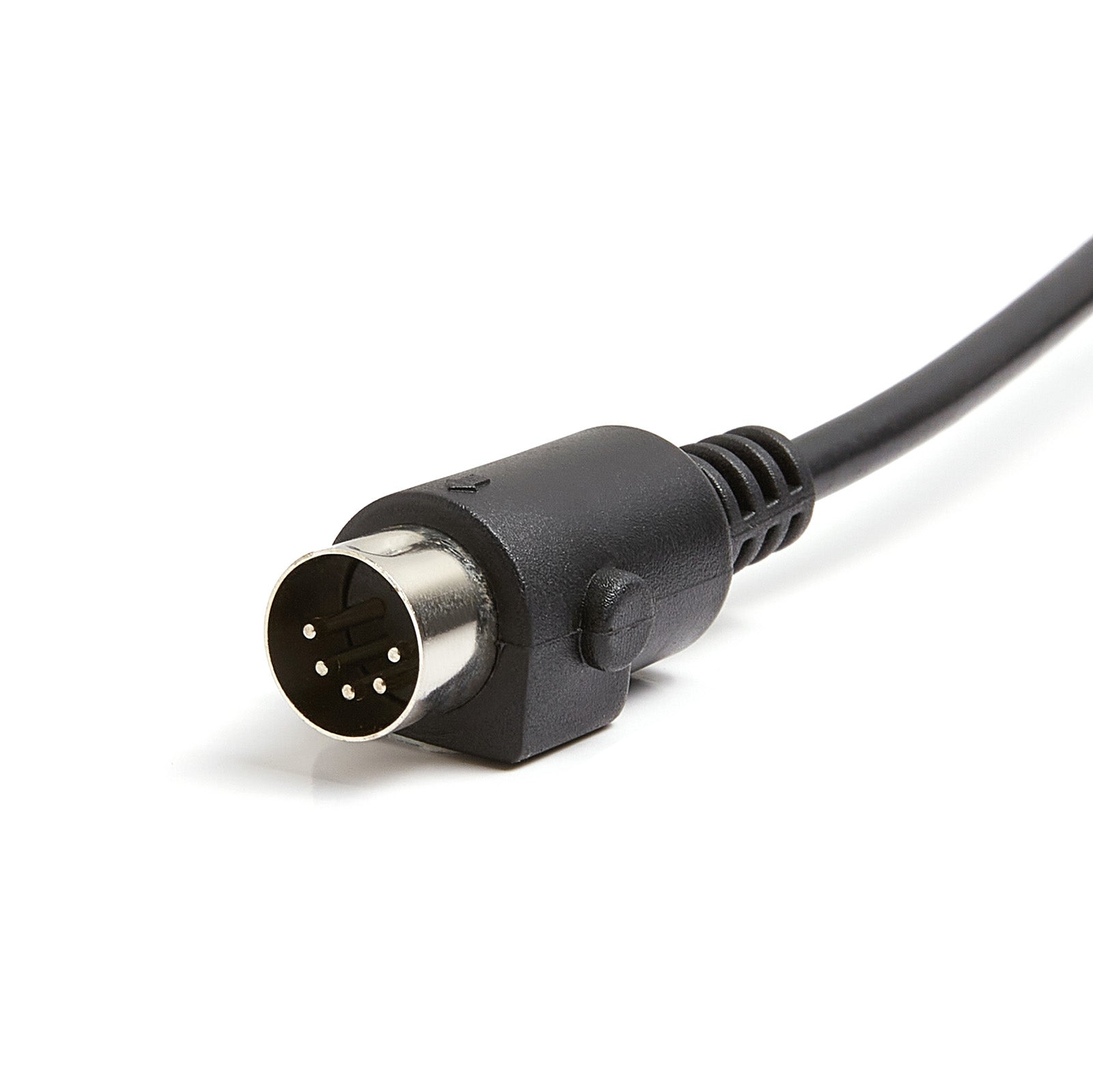

- The plug of the switch is a round 5 pin male plug.
- The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
- When you are installing the switch, do not install the plastic cover until everything is done.
- After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
- Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, quick operation is more likely to cause damage to the switch.
